          Home >  Product > Styrofoam Engraving Machine

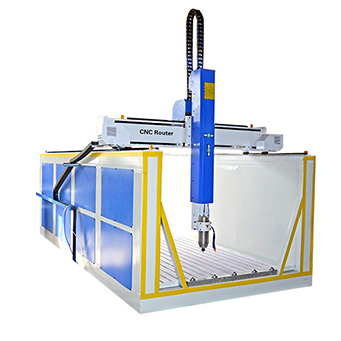

        Polystyrene Foam CNC Router, SL-1325P








        Applicable industries: wooden crafts, woodworking furniture, advertising industry, batch processing of sheet metal products industry
        Applicable materials: organic glass, PVC board, KT board, wood board, synthetic board, acrylic, metal and other materials
        Advantages:
        (1) High-power spindle point machine for high-efficiency processing
        (2) Compatible with Beijing Jingdiao/Wentai/CAD/Type3/Artcam and other software
        (3) The bed and gantry are welded with steel structure seamlessly Machine high temperature aging treatment, strong steel, no deformation.
        (4) Engraving machine Z-axis back triangle structure installation technology, guide rail triangle structure layout, greatly reduce the resonance generated by the Z axis, improve the service life of the guide rail slider, and improve the engraving accuracy.

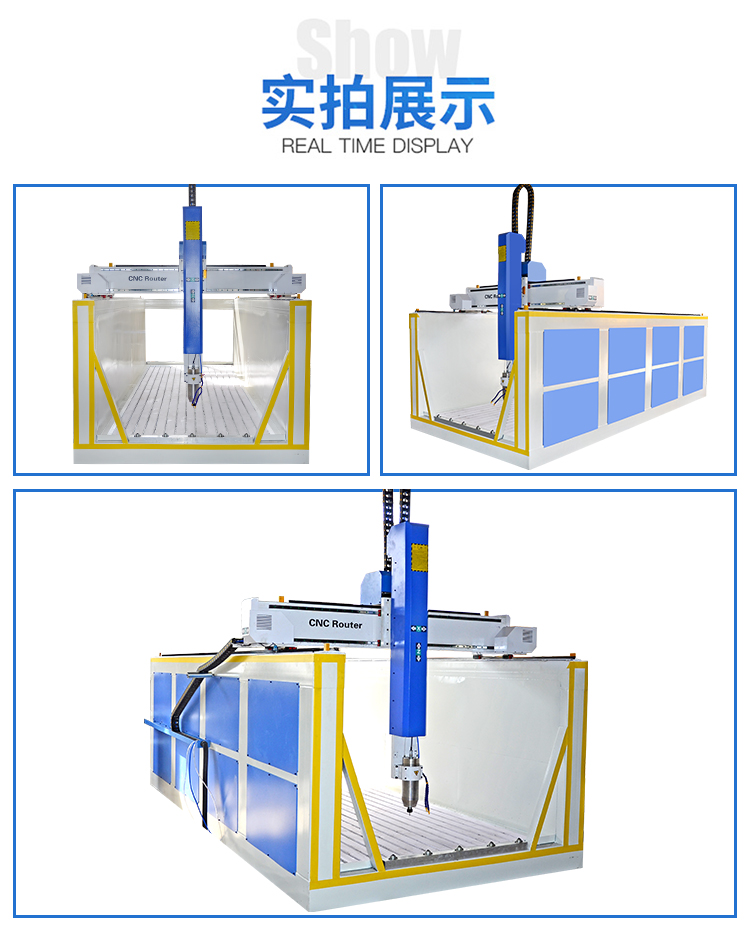

        Polystyrene Foam CNC Router, SL-1325P(圖1)

        Polystyrene Foam CNC Router, SL-1325P(圖2)
        Polystyrene Foam CNC Router, SL-1325P(圖3)







        Product Name/Model
        Polystyrene Foam CNC Router, SL-1325P
        Working  size
        1300*2500*800mm
        Re-position accuracy
        ＜0.05mm/1000mm
        Table/gantry structure
        Aluminum T Slot+PVC，Steel pipe gantry
        Machine body
        Welded with square pipe (with horseshoe)
        Motor & Driver
        Stepper （Hybrid Servo/Servo are optional）
        Spindle Power
        2.2KW,3.0KW,5.5KW water/air cooling（optional）
        Spindle RPM
        6000-24000r/min
        Working Voltage
        220V 50hz/380V50hz
        Command Code
        G Code、F/S command is compatible
        Max running speed
        15M/Min
        Transmission mode
        Gear wheel for XY axis, ball screw for Z axis
        Control system
        NcStudio/RichAuto/Mach3(optional)
        Frequency Converter
        Best
        Square mode
        20/25 Square Linear Guide Rail（optional）
        Material Fixing way
        Clamp
        Dimension
        3000*2000*2000mm
        Weight
        1000kg
        Machine color
        Black and Red /Blue and White(optional)
